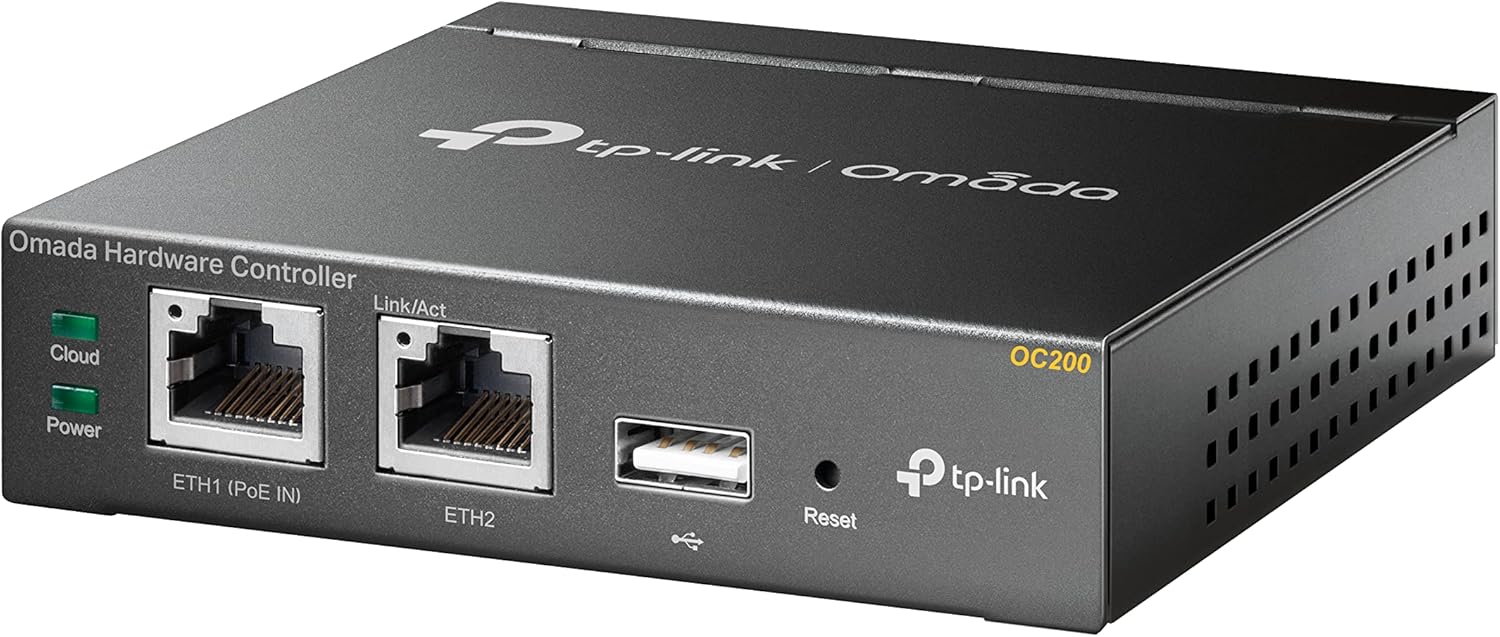

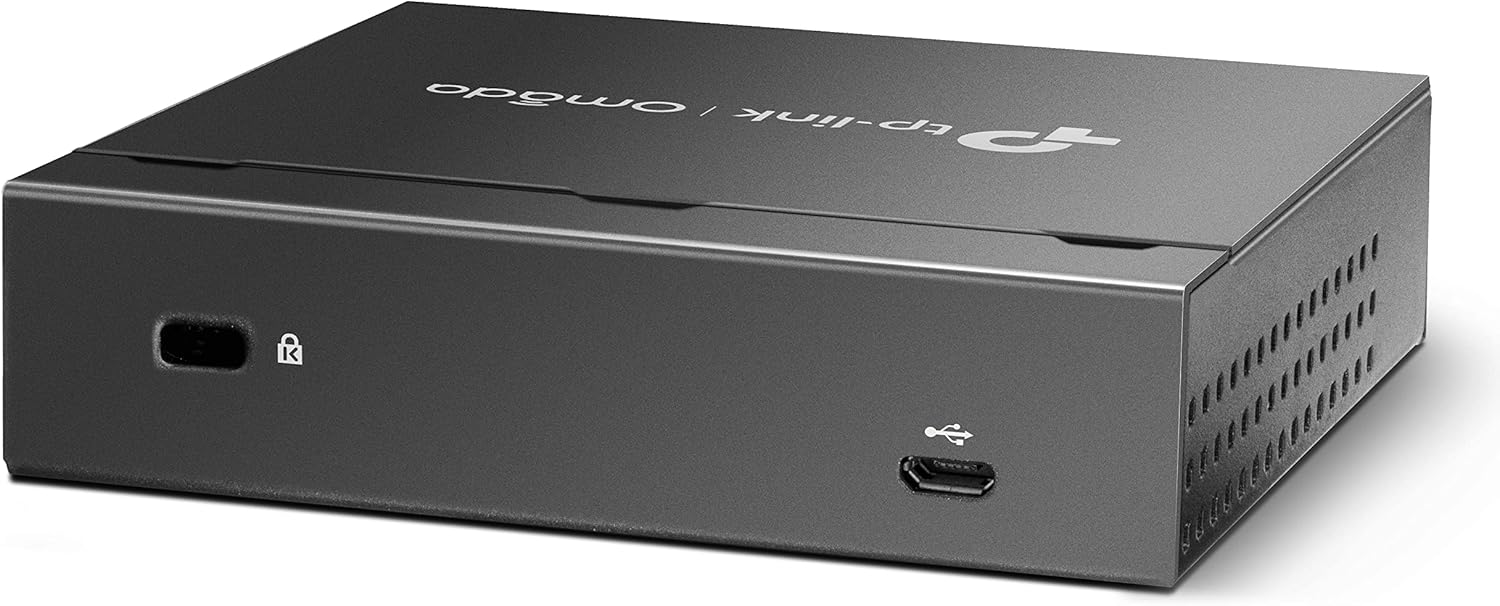

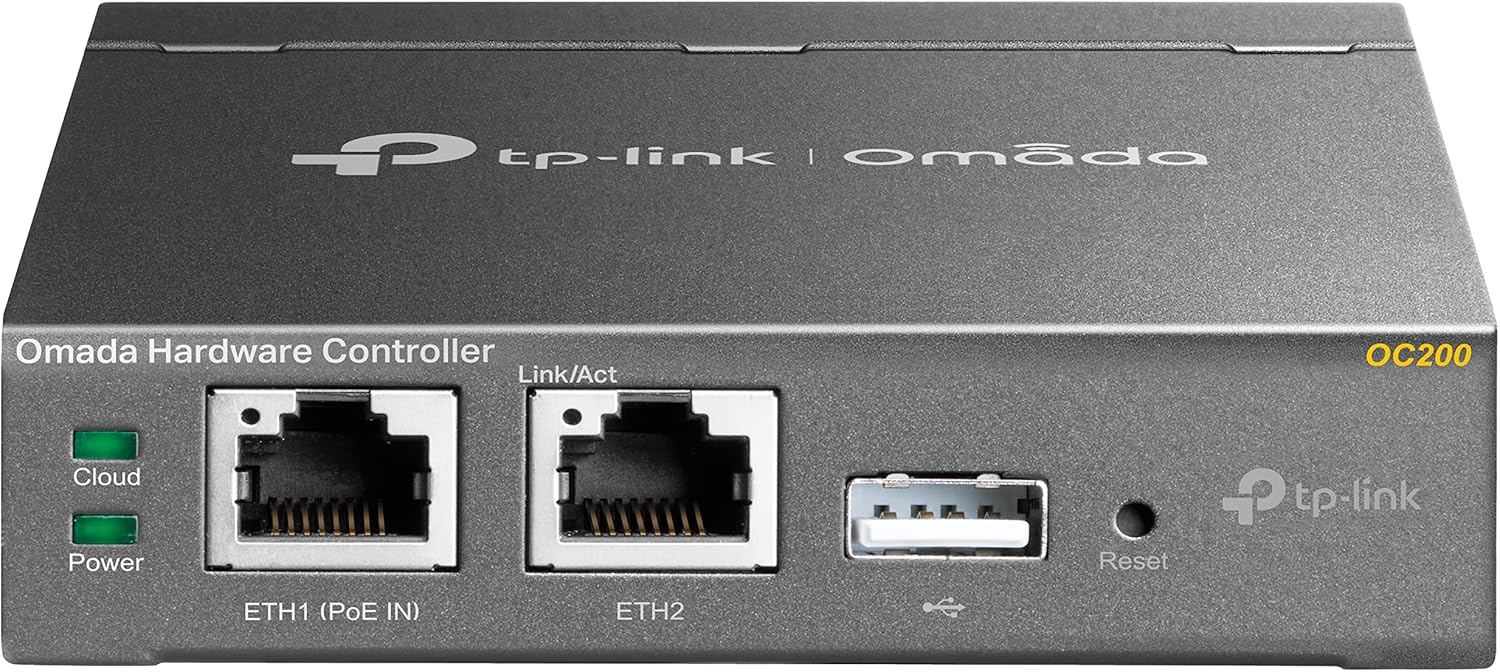

TP-Link Omada Hardware Controller – TL-OC200

Centralized Cloud Management

The TP-Link Omada Hardware Controller – TL-OC200 allows you to manage your entire Omada network from one place. With centralized control, you can monitor access points, switches, and gateways seamlessly. In addition, cloud access ensures you can configure and oversee your network from anywhere without extra software installation.

Reliable Performance and Security

The TL-OC200 is built with a dual-core processor that maintains smooth network management even in demanding environments. It supports real-time monitoring, advanced statistics, and device configuration to keep your business operations running. Moreover, its secure design includes encrypted remote access, ensuring your data remains protected at all times.

Easy Setup and Scalability

This hardware controller simplifies the setup process with a plug-and-play approach. Through the Omada app or web interface, you can configure devices in just a few steps. As your business grows, the TL-OC200 scales with you, managing up to hundreds of devices and thousands of users, making it a long-term solution for expanding networks.

Technical Specifications

Hardware

• Processor: Dual-core 1.2 GHz

• Memory: 1 GB DDR3 RAM

• Storage: 8 GB eMMC

• Ports: 1 × 10/100 Mbps Ethernet Port, 1 × Micro USB Port, 1 × Reset Button

Management

• Centralized Management of: Access Points, Switches, and Gateways

• Maximum Devices Supported: 100 Access Points, 100 Switches, 100 Routers

• Maximum Clients: Up to 10,000

Cloud Features

• Omada Cloud Access without additional setup

• Encrypted remote access

• Real-time monitoring and reporting

Dimensions & Power

• Dimensions: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

• Power Supply: Micro-USB or 802.3af PoE

• Power Consumption: 3.5 W

Software Features

• Multi-site management

• Batch configuration

• Captive portal for guest access

• Firmware upgrades via cloud
